18 results
OSMP1542
Air-Delivered Bomb Yemen Paveway kit
Analyst Note:

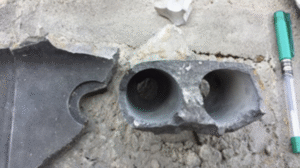

This image shows remnants of the MXU series airfoil group, or the tail section, that is paired with Paveway series bomb guidance kits. The remnant on the right is the retractor mechanism, one of two, that are present inside the MXU series airfoil group. (ARES)
OSMP1568
Rocket or Missile Yemen AGM-114 Hellfire series
Analyst Note:
This image shows a close up view of an actuator assembly of a AGM-114 'Hellfire' series missile. This assembly is what actuates the control fins, and the attachment point for one of the control fins is visible at the bottom right of the image. This assembly belongs to the control section of the missile, which is the rearmost section of the missile. (ARES)
OSMP1412
Rocket or Missile Syria
Analyst Note:
This image shows a improvised rocket-assisted munition (IRAM). This particular munition consists of a 107 mm rocket motor with an industrial gas cylinder fitted in place of the standard warhead. The frost present on the cylinder indicates a pressurised gas was released. The yellow–green residue is consistent with a payload of chlorine gas. (ARES)
OSMP1409
Air-Delivered Bomb Syria
Analyst Note:
This image shows one of the two improvised air-delivered munitions (IADMs) containing a chemical payload used in an attack by the Syrian Arab Air Force on 7 April 2018 in Douma, Syria. This image shows how the IADM comprises a cradle surrounding an industrial gas cylinder. These cradles typically incorporate fins, wheels, and lifting lugs. The fins and the wheels of the cradle can be seen in this image (ARES)
OSMP486
Air-Delivered Bomb Syria JDAM kit
Analyst Note:
The visible component is part of a Joint Direct Attack Munition (JDAM) guidance kit, an accessory package that is fitted to unguided air-delivered bombs to convert them to precision guided munitions. Specifically, this image shows a control fin from the tail assembly. Whilst the JDAM kit would not constitute a munition in its own right, this remnant is included in the OSMP as contextual information strongly suggests it formed part of a complete munition that functioned. (ARES)
OSMP483
Air-Delivered Bomb Syria RBK-500 PTAB-1M
Analyst Note:
Russian air-delivered cluster bombs, such as this one, are often named using a designation that is a compound of the names of the cargo (carrier) bomb and the submunition it carries. For example, this RBK-500 unguided, air-delivered cluster bomb carries 268 PTAB-1M HEAT submunitions, and is thus designated the 'RBK-500 PTAB-1M'. (ARES)
