Incendiary Munition
Rather than explosive power (i.e, blast or fragmentation mechanisms), incendiary munitions rely on the chemical reactions of flammable materials to ignite and set fire to targets including buildings, supplies, and vehicles. They are typically used against flammable targets such as fuel and ammunition dumps or vegetation, and can be delivered by a range of platforms including aircraft and artillery guns. Examples of incendiary compositions include white phosphorus, napalm, and thermite. Incendiary effects are sometimes a desired additional damage mechanism for other types of munitions, but the term ‘incendiary munition’ is usually reserved for those which rely primarily on thermal damage mechanisms.
Analyst Note:

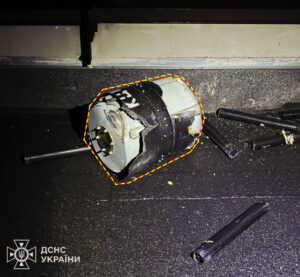

Considered with additional contextual materials, it is assessed that this image shows the rocket motor section from a 122 mm incendiary rocket, specifically the 9M22S or 9M28S models. Both rockets carry the same warhead, but use rocket motors of different lengths; not enough of this motor is visible to positively identify the model. (ARES)
Analyst Note:
This image shows a stepped component positioned at the front of the warheads carried by 122mm 9M22S and 9M28S incendiary rockets. This structure helps to push the ML-5 incendiary elements out of the rear of warhead once the fuze in the nose functions. It is a relatively distinctive component, and commonly found in the vicinity of where the incendiary elements fall. (ARES)
Analyst Note:
Photos released by the Israeli Air Force show an F-16 aircraft carrying two 2,000-pound-class air-delivered bombs fitted with Joint Direct Attack Munition (JDAM) guidance kits. Whilst the bomb body is visually similar to a MK 84 general-purpose aerial bomb, the marking scheme is distinctly different. The combination of yellow and red bands most likely indicates both a high explosive and incendiary payload. This is consistent with the marking scheme applied to specialised U.S. munitions intended for use against chemical and biological weapons targets. The best known of these is the BLU-119/B CrashPAD ('Prompt Agent Defeat'), which uses a MK 84 bomb body and contains 170 lbs of PBX-109 and 420 lbs of white phosphorus. It is not clear if agent defeat weapons were ever exported to Israel, or if a local analogue was developed. Capabilities of this type often remain classified. (ARES)
Analyst Note:
This image shows a 9M22S rocket with some of its unfunctioned payload of 180 ML-5 incendiary elements. Each ML-5 is a hexagonal prism formed from a hollow shell of magnesium that is filled with an incendiary composition. These elements are ignited by the ejection charge of the rocket’s warhead upon functioning. Two fuzes are also visible at the bottom of the image, immediately above and below the ruler. (ARES)
Analyst Note:
The ZAB-250-200 (ЗАБ-250-200) unguided air-delivered bomb is loaded with 48 kg of a napalm-like thickened incendiary mixture, 8 kg of cotton scraps soaked in kerosene (paraffin), and 4 kg of pyrotechnic composition to aid with ignition. (ARES)
Analyst Note:
The 9M22S is essentially the ‘full-sized’ version of the shorter 9M28S surface-to-surface rocket previously recorded in the OSMP. Both rockets carry the same 9N510 incendiary warhead, but differ in the length of their rocket motor sections, and thus range. (ARES)
Analyst Note:
The 9M28S surface-to-surface unguided rocket carries the 9N510 warhead, which disperses burning thermite-type incendiary elements over a wide area upon functioning. This munition is designed to start fires in target areas vulnerable to incendiary attack, including forests, ammunition dumps, and fuel storage sites. (ARES)
Analyst Note:
In this image, part of the distinctive internal 'X-rib' arrangement is visible protruding from the base of an M825-series white phosphorus smoke projectile. This is a useful diagnostic feature that can be used to distinguish remnants of these munitions from those of similar projectiles (such as those using a hexachloroethane/zinc smoke composition) if markings are not visible (ARES)
Analyst Note:
Like the more common 9M22S rocket, the 9M28S carries the 9N510 warhead, which dispenses 180 individual incendiary elements composed of a magnesium alloy shell filled with a thermite-like incendiary composition. (ARES)
Analyst Note:
The 120 mm 3-Z-2 incendiary mortar projectile contains 6 incendiary elements, four large and two small. These are hollow steel ‘cups’ filled with an incendiary mixture of an unknown type, but understood to be comparable in effect to thermite. (ARES)
